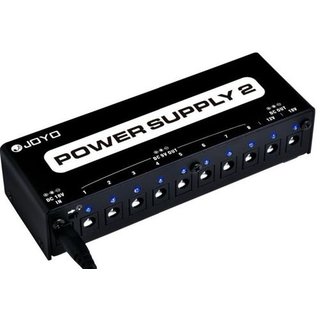

This small and exquisite designed Power Supply features ten isolated output jacks of 9V, 12V and 18V, to meet different pedal's needs. 10 Blue LEDs indicate short circuits, and give a cool lighting on dark stages. Isolated Short Cricuit/Overcurrent Protected. Includes Cables.
1. Ten Isolated Output 10
2. Isolated Short Cricuit/Overcurrent Protected
3. Powers For 9V?12V or 18V PEDAL
4. Bright Blue LED For Pedal Board Lighting & Short Cricuit Indicate
The JP-02 features the following power options:
OUTPUTS 1-7:All DC 9V power output with EACH output of 100mA.Suitable for most analog 9V effects on the market today.(negative center application)
OUTPUT 8: Also DC 9V Power output but with maximum output of 500mA, which is suitable for many digital effects as well when more power is required normally for these units.
OUTPUT 9: DC12 OUTPUT: The maximum output current is 100mA and is used for effects requiring 12V of power.
OUTPUT 10: DC18 OUTPUT:The maximum output current is 100mA for effects that carry this rating.
All outputs are fully regulated and offer Isolated short circuit protection, meaning if one output is overpowered beyond the power rating for any reason, all other outputs will not be affected. Also featuring Blue LED's at every output. Great for dark stages!
1. Power Adapter AC 110v-240V (for International usage)
2.Input: DC 18V.
3.Dimensions: 19.6 x 19.2 x 7.8 cm
4.Net weight: 0,92 kg
