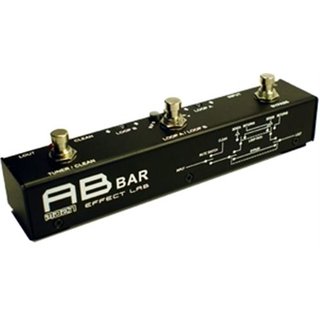

MoenFX - AB Bar /  AB Switcher

True Bypass Switcher im ultrastabilen Metallgehäuse.

Specifications:
Dimensions................................200 mm(L) x 36 mm (W)X1.33 mm(H) Weight....................................................................200g Power Supply.........................................................DC9V to 12V Current Drain......................... .....................................max. 10mA Stomp Switches....................................................3PDT true bypass type
Switch Distance (Center to Center).....................................2.8 inch


AB BAR is a true bypass switcher which could simply toggle between two effect loops, with addtional loop-send-buffers, it's more flexible to connect some vintage fuzz or wah pedals. The tiny footprint makes it possible to fit any type of pedal board

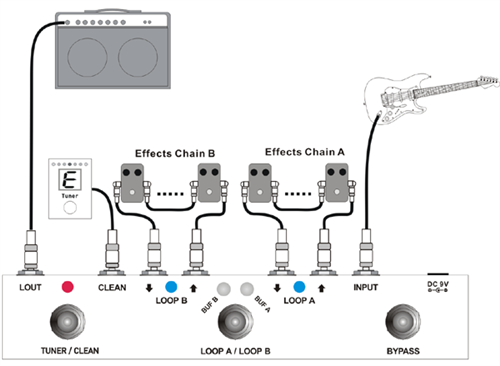

Layout Example 1
In this configuration, engage TUNER/CLEAN switch (led on) will switch the guitar signal to a tuner, at the same time the LOUT is muted. LOOPA/LOOPB switch choose effects chain A or chain B.

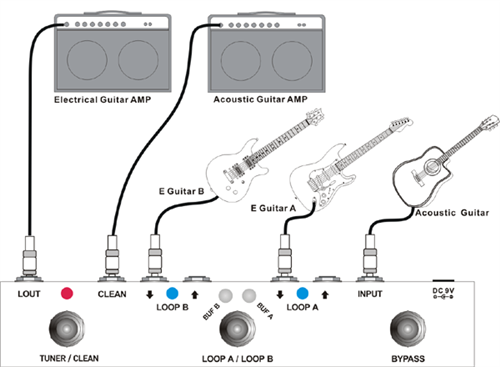

Layout Example 2
In this configuration, use AB BAR to choose 3 different guitars as input,

Path1 - Acoustic Guitar -> Input-> Clean out-> Acoustic Guitar Amp
( “BYPASS” on, “CLEAN” on)

Path2 - E Guitar A -> Return A-> LOUT->Electrical Guitar Amp
( “BYPASS” off, “CLEAN” off, “LOOPA” on )

Path3 - E Guitar B -> Return B-> LOUT->Electrical Guitar Amp
( “BYPASS” off, “CLEAN” off, “LOOPB” on )
