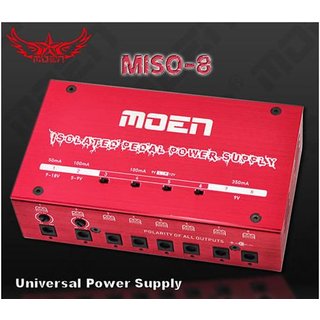

MOEN Isolated Pedal Board Power Supply
The MISO8 will power your guitar effects pedals from one
power point reliably and without noise, thanks to the onboard
transformer isolation. Supplying up to 8 dedicated 9V DC electrical
currents. Unlike some power stations, the MOEN MISO8 provides the user
with plenty of options with the inclusion of 4 switchable 9V/12V 100mA
power outs, and 2 variable outputs selectable for 9-18V and 5-9V
respectively. Outputs 7 and 8 are dedicated 9V outputs.
Why Power Stations are Important
Powering 4 or 5 pedals with a daisy chain is fine, if they are
relatively low 'current' consumption pedals. But if you're powering
more than this off a single 9V AC/DC adapter you can overdraw the power
supply and create electrical issues within the pedals. This can often
result in unwanted buzz or noise in your audio signal.
- 8x Output Power Brick
- 8x DC Power Cords
- 2x Polarity Converter Cables
- 1x 240V IEC cable
- 1 x AC output
- Mains Voltage Selector
- Flashing LEDs Indicate Current Overdraw
- On/Off Switch for LEDs
- Switchable 110-120V to 220-240V input
- Dimensions: 152 x 86 x 44mm
- Weight: 800grams
Maximum Current Output per Channel:
- 1: 9V -18V / 50mA
- 2: 5V -9V / 100mA
- 3-6: 9V - 12V / 100mA
- 7-8: 9V / 350mA
The Moen MISO-8 is
designed with a high efficiency transformer that provides 8 regulated
& isolated DC outputs that are split into 3 groups;
- 2 variable outputs - the first can be dialed between 9 ~ 18V DC at 50mA, the second can be dialed between 5 ~ 9V DC at 100mA.
- 4 switchable outputs - all 4 outputs can be switched between 9V DC and 12V DC at 100mA each.
- 2 high current outputs - the last 2 outputs provide a 9V DC supply at 350ma each for those power hungry effects.
unit also features LED indicators for each output, overload protection
for each output, side radiator louver design to ensure it works properly
even in a hot environment, 110v/220v AC input switch and an AC power
outlet on the rear.
- LED indicators for each output.
- Overload protection for each output.
- Side radiator louver design to ensure it works properly even in a hot environment.
- 110v/220v AC input switch.
- AC power outlet on the rear.
