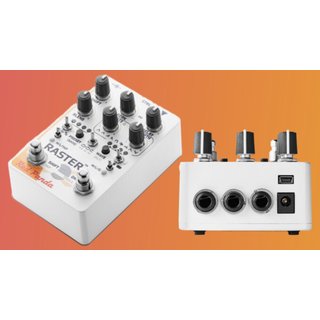

Features
- 1600 ms stereo delay time in three ranges
- 3200 ms forward delay available via editor
- Micro pitch shifting and detuning
- Tuned pitch shifting, +/- 12 semitones
- Phase and frequency shifting
- Repeats shifted once or continuously
- Reverse delay
- 7 modulation waveforms, envelope, and reverse envelope
- Modulation can be assigned to delay, pitch, or amplitude
- Most parameters have left/right controls for stereo delay
- Parallel, series, or ping pong structure
- Tone control
- Stereo input/output (TRS)
- Soft touch bypass switch with selectable momentary, latching, or mute output
- Shift footswitch momentary, latching, or assignable to tap tempo
- Assignable expression pedal, remote switch, remote tap, or MIDI port
- Full MIDI implementation with additional parameters (USB or TRS)
- MIDI clock synchronization
- Presets (4 on front, 127 via MIDI)
- Web-based editor for editing presets and accessing hidden parameters
- ~
Das Raster vereinigt eine weite Palette von Sounds in einem Gerät, von Delay über phaseninvertierte Wiederholungen, Arpeggios bis zu chaotischer Selbstoszillation und sich ständig selbst modulierenden Tonlandschaften.
Der Kern des Raster ist ein cleanes Delay mit bis zu 1600 Millisekunden Verzögerung. Setzt man alle diese Möglichkeiten gleichzeitig ein und dreht die Regler auf, dann befindet man sich in Ringmodulator Gefilden.
The Raster delivers a wide range of sounds including harmonizing delays, phase-shifted repeats, arpeggios, alien textures, chaotic self-oscillation, and continuously evolving soundscapes.The core of the Raster is a clean delay with up to 1600 milliseconds delay time. It can be pushed to extremes for ring modulation and inharmonic shifted delays that distort and break apart.
Specs Deutsch:
Experimentales Digital Delay mit 20-1600 ms Verzögerung,
Micro Pitch Shifting, Tuned Pitch Shifting, Phase Shifting, Reverse Delay,
Regler: Shift, Feedback, Delay, Blend, zwei 3-fach Kippschalter zur Auswahl von Waveform & Wiederholung, On/Off Fußschalter, Shift Fußschalter,
24 bit A/D und D/A Wandler,
True Bypass,
In/Output: 6.3 mm Monoklinke, stirnseitig montiert,
Expression pedal /CV Input: 6.3 mm Monoklinke, stirnseitig montiert,
Pulverbeschichtetes Metallgehäuse mit dreifarbigem Siebdruck,
Abmessungen (L x B x H): 106 mm x 80 mm x 47 mm,
Stromversorgung: Optionales 9V DC Netzteil min. 100 mA, 2,1 mm x 5,5 mm Hohlstecker, (-) Innen,
Made in USA
The Raster is a digital delay with a pitch shifter integrated into the feedback loop. It delivers a wide range of sounds including harmonized delays, reverse delays, chorus, arpeggios, infinite descents, chaotic self-oscillation, and continuously evolving soundscapes.
The core of the Raster is a clean delay with up to 750 milliseconds delay time. The low end of the delay control allows you to precisely dial in resonant feedback sounds. The feedback control covers a wide range from slapback delay to noisy, textured infinite feedback loops. Knob responses are carefully tuned for exploration of self-oscillation and feedback on the verge of blowing up.
Three pitch shifting algorithms are integrated into the feedback loop. Repeats can be pitch shifted up or down by an octave in semitone steps. The detuning mode gives smooth pitch changes from a fourth down to a minor third up. Slight detuning creates chorused delay sounds, while wider intervals with feedback create strange organ-like textures. Repeats can continuously shift up or down, or shift once and remain at that pitch. Two reverse delay modes can be used for reverse solos or with pitch shifting for crystal echoes.
Beyond pitch shifting, a phase shifter creates subtle evolving repeats, dissonant harmonies, and barber pole flanging. It can be pushed to extremes for ring modulation and inharmonic shifted delays that distort and break apart.
Capable of extreme sonic mayhem, it can also be used with restraint to add unique character to your sound.
, ,
