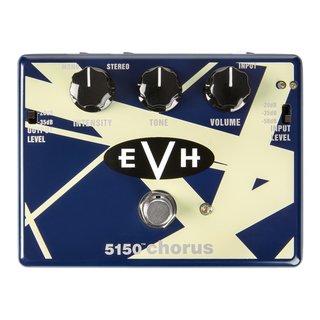

Dunlop MXR EVH 5150 Stereo Chorus

Charming chorus effect that defined an era

Classic, iconic, irresistible. The MXR EVH 5150 was based on the legendary chorus unit Eddie used throughout the 80s. His chorus pedal unveiled tone that became a quintessential part of any of Eddie’s clean guitar parts, and any mild overdrive. This unforgettable tone could be right at your disposal. Calling all Van Halen vans...

Wade through an incredible array of captivating soundscapes. Then unleash. This pedal boasts an easy-to-use design with responsive dials that were birthed for the modern player. Reap the benefit of complete refinement of your tone, and play around with controls for volume, tone, and intensity. So you can always inject your own riffs with plenty of unmistakable Eddie Van Halen flair.

World class design

You know you’ve got legendary tone, and sound used by a true icon. But with world renowned MXR design, you have quality that’s ready and raring for both the stage as well as the studio. It’s packed with Eddie’s iconic chorus circuit, whilst modern details give you plenty of flexibility. Plus, you can choose to have the pedal set to true bypass, or buffered - all courtesy of an internal bypass toggle switch. This legendary chorus pedal also features input and output level switches to optimise signal-to-noise performance too. It’s superbly superior.

Specifications

• Product: MXR EVH 5150 Stereo Chorus
• Code: JD-EVH30
• Controls: Input Level, Volume, Tone, Intensity, Output Level, Internal True/Buffered Bypass Switch
• Inputs: Mono
• Outputs: Stereo
• Input Impedance: 470 kO
• Output Impedance: 4.7kO
• Noise Floor: -89dBV
• Input Level: -20dB, -35dB, -50dB
• Treble: +12dB, -16dB, 60kHz
• Output Level: -20dB, -35dB
• Bypass: True/Buffered
• Current Draw: 95mA
• Power: 9V DC (Not Included)
