Beschreibung

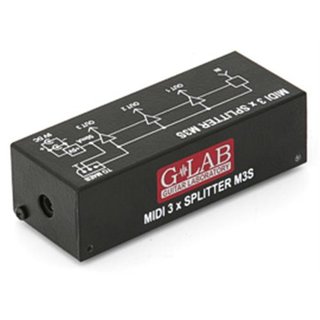

MIDI 3 x SPLITTER M3S is a classic MIDI THRU device which copy the MIDI
signal. It allows to connect to one MIDI device up to three MIDI
devices. Copying doesn’t change anything in MIDI commands (like MIDI
THRU). M3S can work with any MIDI device that fulfill MIDI standard
requirements.
M3S generates three „thru” copies of the signal arriving at its input.
M3S features two 9V connectors. To one of them should be
connected the power supply and the second one can be used to supply
another device e.g. a stompbox, without a risk of ground loop occurring
(supply is connected only with MIDI OUT circuits). Package contains 9V
cable with angled connectors of 80 cm length. M3S features an output to
connect MIDI 4 x EXTENSION BOX M4EB (product code 00871) which enables
to connect four additional MIDI devices.
Package contains two Velcro fasteners to fix the device to smooth
surfaces. M3S can be installed in the rack 19” using the GLAB 1U RMS
FRONT PANEL.
Basic features:
- MIDI IN and three MIDI OUT connectors,
- galvanic separation of MIDI IN,
- power supply (POWER) and transmission (RECEIVE) LED indicators,
- 9V DC supply,
- possibility to connect an extension module with four MIDI OUTs,
- metal, powder coated casing.
Technical parameters:
| Dimensions: | width 108 mm depth 42 mm height 31 mm |
| Weight: | 170 g |
| Power supply: | 9V DC regulated |
| Power consumption: | 50 mA |
