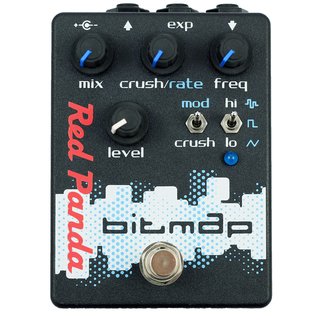

Der Bitmap ist ein Bitcrusher basierend auf ‚fractional bit reduction and sample rate modulation‘. Ein völlig neu erdachter Algorithmus fügt dem Signal die Wärme und den gewissen Anteil Schmutz klassischer Sampler hinzu, während das Signal stufenlos von 24 auf 1 Bit reduziert werden kann. Die Verringerung der Samplerate erzeugt unharmonische Obertöne und kantige Distortion. Subtil eingestellt verleiht es z.B. Drums ein gewissen Knistern. Bei extremeren Einstellungen landet man bei 8 Bit Sounds wie man sie aus Computerspielen kennt.
Beschreibung Englisch:
The Bitmap is a bitcrusher with fractional bit reduction and sample rate modulation. A brand new bit crushing algorithm adds the warmth and grit of classic samplers, while reducing your signal from 24 bits down to 1 bit.
Fractional bit reduction provides smooth changes and a broader range of sounds. Use extreme settings for 8-bit video game sounds.
Specs Deutsch:
Digitaler Bitcrusher,
Fractional Bit Reduction & Sample-rate Modulation,
Regler: Mix, Crush/Rate, Freq, Level, zwei 3-fach Kippschalter zur Auswahl von Crush/Mode und Waveform/Signalstärke, On/Off Fußschalter,
24 bit A/D und D/A Wandler,
True Bypass,
In/Output: 6,3 mm Monoklinke, stirnseitig montiert,
Expression pedal /CV Input: 6,3 mm Monoklinke, stirnseitig montiert,
Pulverbeschichtetes Gehäuse mit dreifarbigem Siebdruck,
Abmessungen (L x B x H): 106 mm x 80 mm x 47 mm,
Stromversorgung: Optionales 9V DC Netzteil min. 100 mA, 2,1 mm x 5,5 mm Hohlstecker, (-) Innen,
Made in USA
The Bitmap is a bitcrusher with fractional bit reduction and sample rate modulation. A brand new bit crushing algorithm adds the warmth and grit of classic samplers, while reducing your signal from 24 bits down to 1 bit. A new bitcrushing algorithm delivers maximum sustain without sputtering on staccato notes. Fractional bit reduction provides smooth changes and a broader range of sounds. Input and output gain controls work with all input signals and give you saturated distortion or dying battery fuzz sounds.
Sample rate reduction creates inharmonic overtones and aliasing distortion. Subtle reduction adds sizzle to drums and high-end buzz to guitars. Use extreme settings for 8-bit video game sounds. Tune to the root or 5th to twist scales into inharmonic melodies. It can also do sample-and-hold sounds to cover "analog bitcrusher" territory.
Sample rate modulation adds subtle inharmonic motion or morphs your guitar into entirely new textures. Triangle, square, or random modulation are available.
The Bitmap works with guitar, bass, synthesizers, drum machines, and other instruments or line level sources.
Features
- Fractional bit reduction
- Sample-rate modulation
- Expression pedal input for sample rate (CV-compatible)
- Blend control to maintain bass or add subtle crushing
- Input gain switch to accommodate single or dual coil pickups and line-level signals
- Output level control for consistent volume, can also provide extra boost
- 3 color screen printed enclosure
- Soft-touch knobs
- True bypass
- Made in USA, from PCB to final assembly (enclosure made in Canada)
Controls
mix: blend control, from dry to wet
crush/rate: bit reduction or modulation rate
freq: sampling rate, counterclockwise to reduce frequency
level: output volume
crush/mod: selects function of crush/rate knob
lo/hi: 3-position input gain (crush mode)
waveform: triangle/square/random sample rate modulation (mod mode)
Expression pedal input controls freq
, ,
