- Powers six 9v pedals and two others (9v,12v or 18v) all at once without losing any signal intensity.
- Comes with totally 8 DC cables to connect your pedals to the VP3.
- Isolated outputs and Short Circuit Protection ensures the stable working condition.
- The LEDs of each 9v OUTLET will light in red to indicate the short-circuited pedal without cutting off other outlets? power.
- FCLC (Foldback Current Limiting Circuit) provides ultimate protection against power shortages and overloads. Even at full load, you?ll enjoy the quiet and cool operation of a fully regulated power supply.
- All ROHS components inside which are stored in a portable, robust and occlusive metal case.
- Customized DC jacks with long time working life up to 50,000 Times Pull and Plug.
- Dual color LED, green for power indication and red for short-circuited pedal caution.
- ?INPUT: AC 100v~240v at 50/60Hz, 2000mA.
- OUTPUT: DC 12v, 2000mA.
- POLARITY: Positive Barrel and Negative Center.
- INPUT: DC 12v 2000mA
- OUTPUTS: 9v~1500mA (x6), 12v~1000mA,18v~1000mA (by switched on)
- LEDs: Blue LED for power light, Red LEDs for short-circuited indicates.
- Switch: 3-slide switcher for voltage change among 9v, 12v and 18v
AC to DC adaptor
? INPUT: AC 100v~240v at 50/60Hz, 2000mA.
? OUTPUT: DC 12v, 2000mA.
? POLARITY: Positive Barrel and Negative Center.

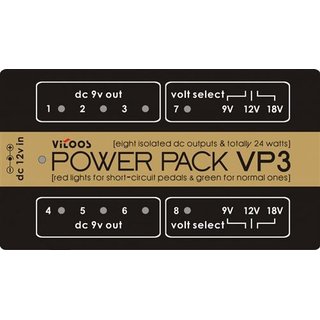

VP3 Power Supply
? INPUT: DC 12v 2000mA
? OUTPUTS: 9v~1500mA (x6), 12v~1000mA,18v~1000mA (by switched on)
? LEDs: Blue LED for power light, Red LEDs for short-circuited indicates.
? Switch: 3-slide switcher for voltage change among 9v, 12v and 18v
? Do not put or use in waterish locations which might cause circuit shorted or other electric dangers.
? Use only 12V/2A output DC adaptor with positive barrel, negative center polarity plug.
? Do not use any other adaptors different from the requested ones as above, or there might cause harm to the unit, the adaptor or you.
? Unplug your VP3 when not in use for extended periods of time.
? Guard against water or other liquids entering the enclosure.
What?s in package
? VP3 Power Supply
? AC to DC adaptor
? 8pcs DC cables
? User Manual
